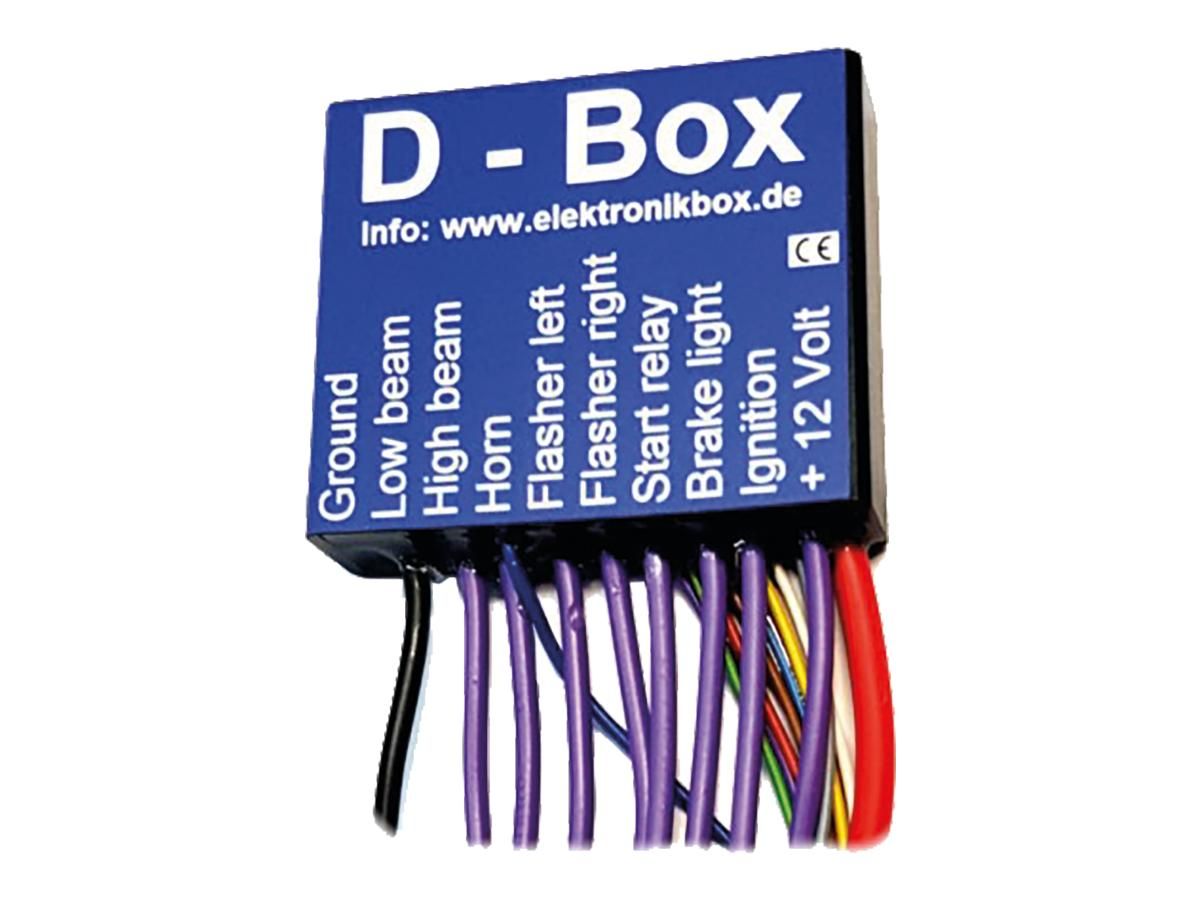

Elect.Control Unit for Push Buttom Handlebar Control

Description

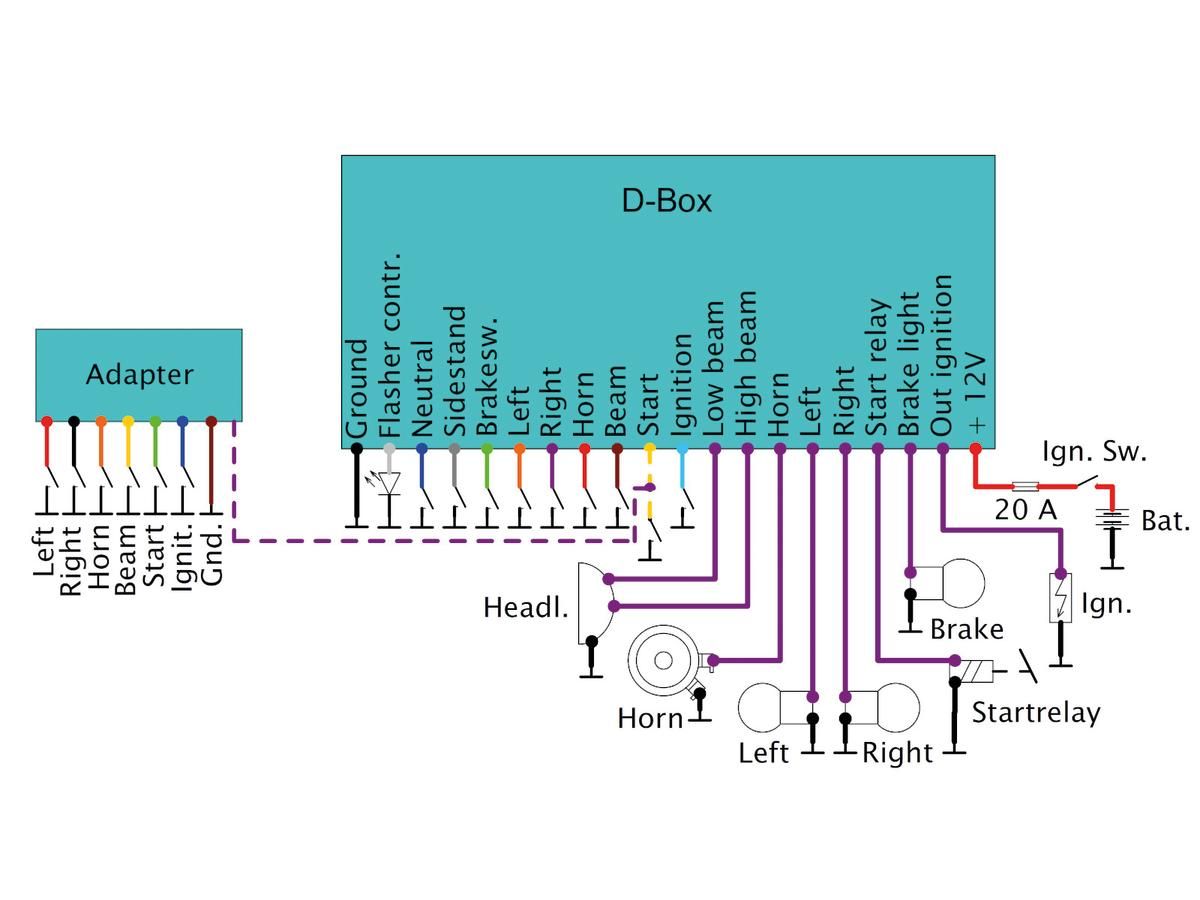

This electronic box version D controls the main functions of your motorbike in combinations with switches or push buttons.

• Integrated flasher relay, contol with buttons or switches
• Integrated output for direction indicator in the cockpit
• Integrated sidestand - and neutralswitch inputs if security options in the box are activated
• Auto flasher off function, emergency flasher, "Position light" mode adjustable
• Control of low - and high beam possible with a button or a switch
• Control of starter relay
• Control of the horn
• Brake light control
• 8 status led´s at the outputs give a visible response of the power outputs
• Recognizes automatically a connected handle bar adapter for button control. A handle bar adapter is available under "accessoires"

The new D-Box can be controlled via only 2 push buttons without the need for the user to learn complicated button combinations:

• One short press on one button will activate the corresponding direction indicators. One more short press on the button switch off the direction indicators
• A long press (above about 0,3 seconds) at the left button switch on the horn
• A long press (above about 0,3 seconds) at the right button will switch on the starter
• Two short presses at the left button will switch between high - and lowbeam
• Two short presses at the right button will switch on or off the ignition

The power outputs are short circuit protected with an implemented self reset function
